Öhrra One
1 Post, 4-6 Line Shade
A gently curved, elliptical profile with a soft taper. Ideal for open courtyards or where a sculptural presence is desired.
Ideal For
Intimate courtyards, garden seating, or design-led outdoor zones where a sculptural, single-mast shade creates impact with minimal footprint.
Öhrra One
The Öhrra Öne is a masterful blend of elegance and simplicity.
With its one-mast, four-line structure, this automatic shade sail casts a gentle shelter over your sitting area at the press of a button.
Deciding how much automation you actually need?Compare automated and manual retractable shade →
Its elliptical design not only enhances the architectural rhythm of your space but also delivers up to 30% more shade than conventional single-mast sails — no compromise on coverage, no clutter of multiple supports. The tension mast can even be installed up to 20 metres away, keeping the field of view open and unobstructed.
Developed through our own sail geometry, the Öhrra Öne’s gently arched form resists weather while creating a quiet, inviting atmosphere — from breakfast in soft morning light to evenings spent winding down beneath a perfectly tensioned canopy.
Specifications
Fabric
-
- Material: WeatherMax® 80
-
Weight: Approx. 270 g/m²
-
Finish: Ribbed matte texture, high colour brilliance
-
Performance:
• UPF 50+ protection
• Waterproof yet breathable
• Resistant to sag, stretch, mildew, and tearing -
Color Options: Comes standard in Oyster or Mist with 17 additional colours available for an additional cost
Want to understand the fabric rating in more detail?Read our guide to UPF 50+ outdoor fabric →
Dimensions of Form
-
- Shade Size: 4m (width) x 4m (depth) up to a maximum 8m (width) x 5.5m (depth)
-
Shape Profile: A gently tapered arch for rain resistance.
-
Mounting Reach: Requires only a single mast with 4-6 tension lines
-
Visual Impact: Organic, minimal footprint with wide overhead coverage
-
Recommended Use: Intimate courtyards, garden corners, or architectural accents
Structure & Mounting
-
Mast Type:
• Single architectural-grade mast
• Stainless steel or powder-coated aluminum
• Round, Square, or hidden mast weights + some customisation available -
Height Range: 3.0m – 5.2m

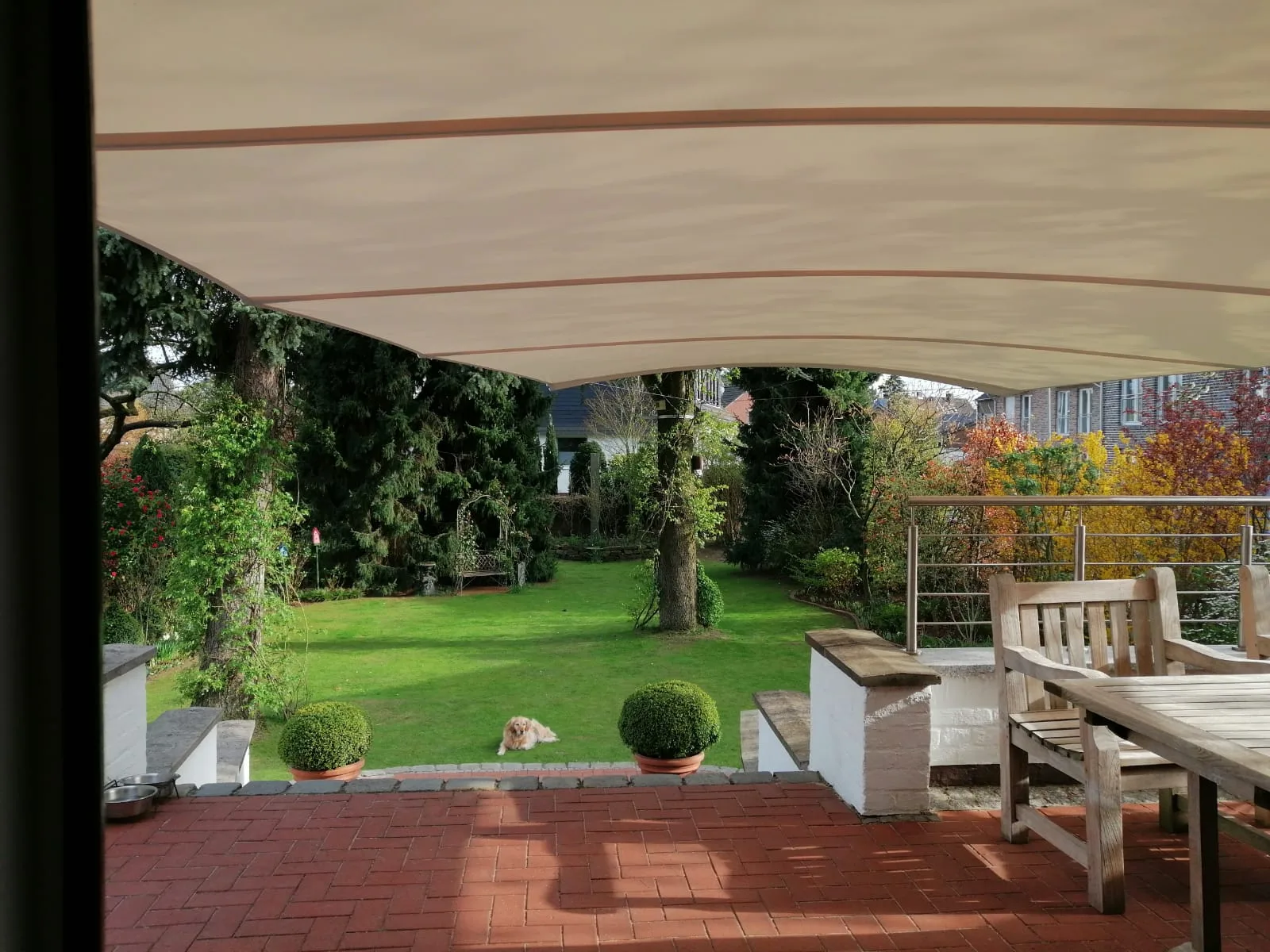

- Can be placed up to 20 meters away, leaving your view uninterrupted.
-
Tensioning: Internal counterweight
-
Fixing Options:
• Ground-mounted base
• Wall-bracket for sail end
• Freestanding available with weight base
Weather Control
- Water Resistance: weather resistant fabric and arched and taut profile allow rain to flow easily off the sides
- Optional wind sensor automatically retracts the shade sail when it exceeds set wind limits; however, interval-based sensing cannot protect against sudden gusts and remote control retraction required during storm warnings and at wind force 7
- Elevated centre shape promotes air circulation
- Wind stability and high load-bearing capacity
Download the Specs
Fill in your details and the PDF will download instantly.
Custom-made shade systems
Architectural retractable shade, tailored to your site and lifestyle.
Request info
Level shade. Sideways runoff.
The arched cross-profiles lift the fabric at the centre so rain drains to both side edges. No tilt required—even in very heavy rain.
- Stays horizontal over the terrace—no pitch needed.
- Side-edge drainage reduces pooling and splash at the front.
- High fabric tension from cross-profiles maintains the arch.
- Cleaner sightlines and headroom than sloped sails.
- Other sail types must be set at significant angles to drain—this one doesn’t.
